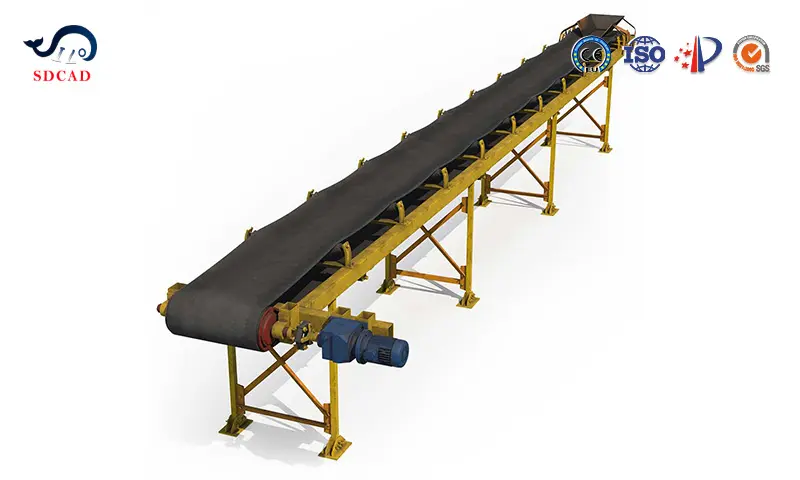

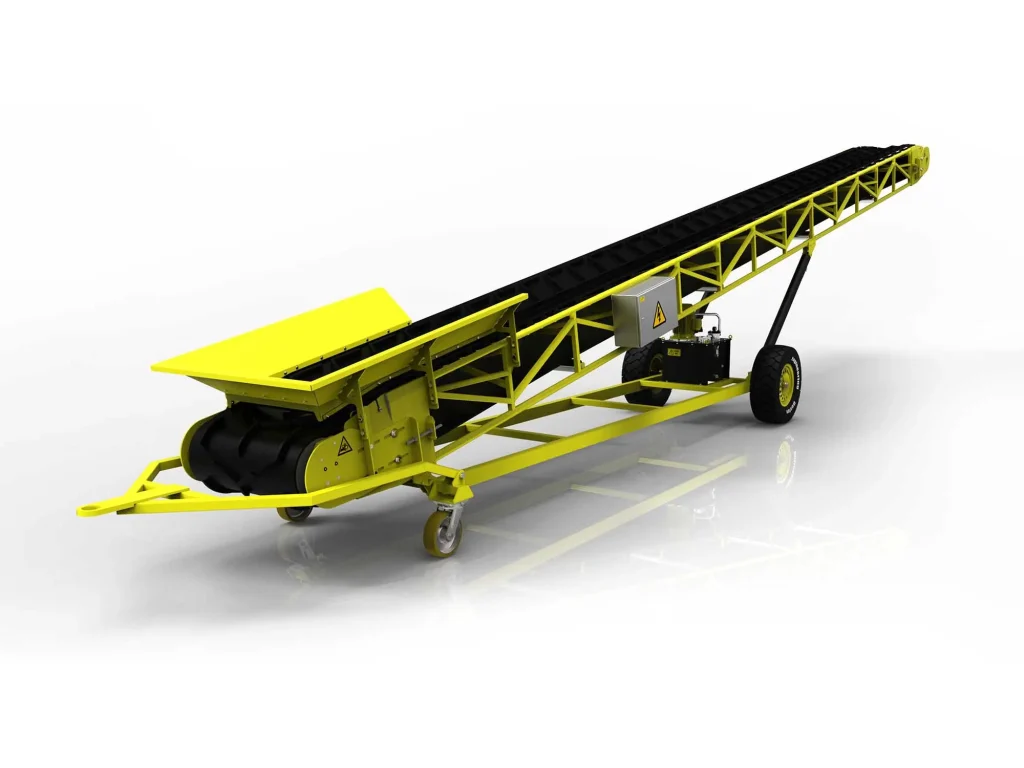

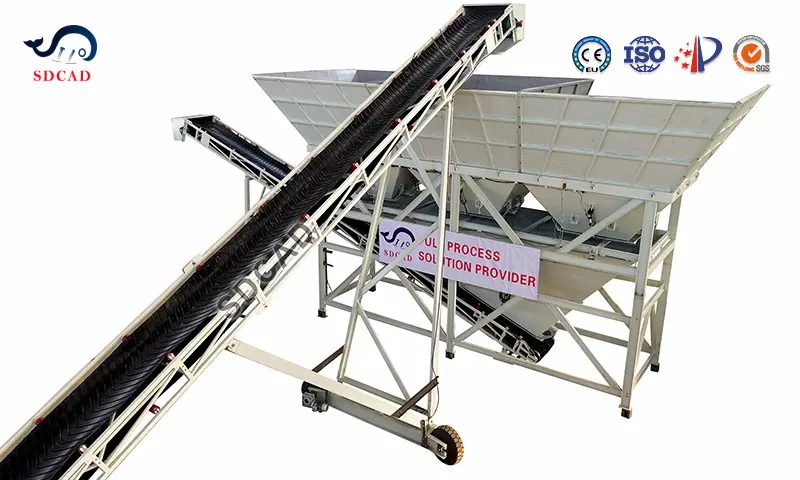

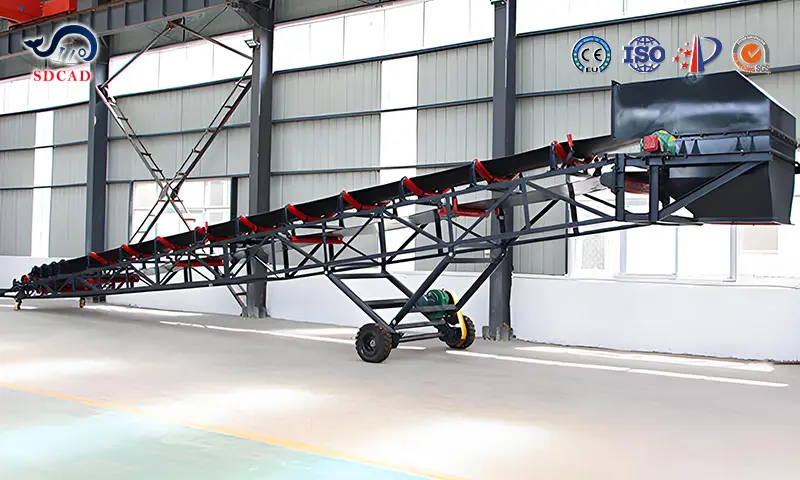

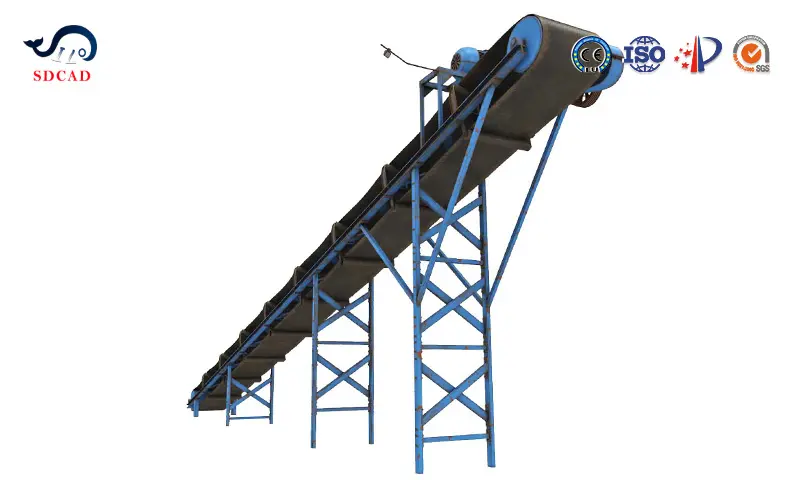

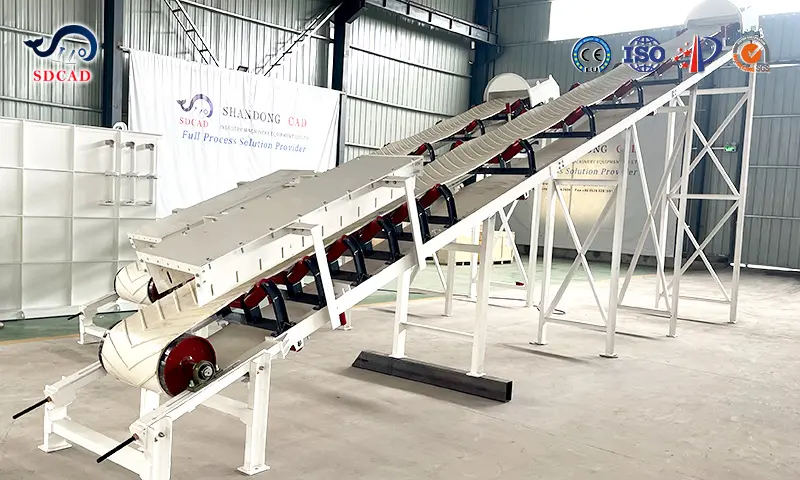

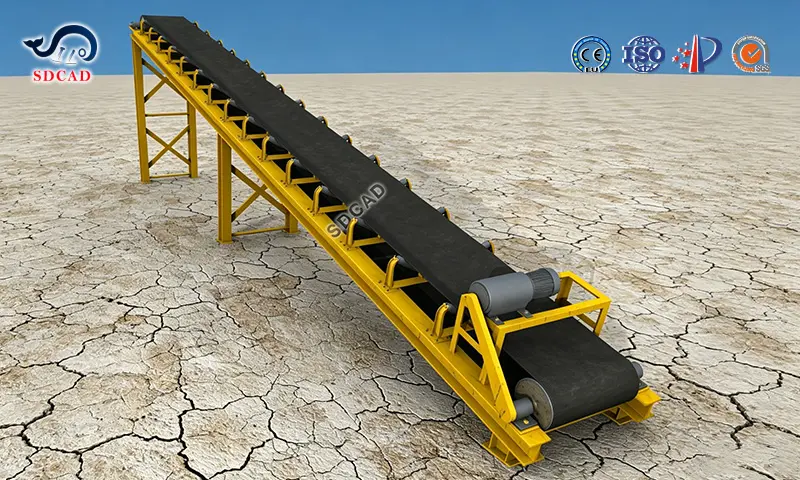

Belt Conveyor is designed to improve efficiency across various operations such as conveying, sorting, inspection, and packaging. It offers a reliable and adaptable solution for transporting a wide range of materials, from bulk items and cartons to packaged goods and industrial components. Ideal for conveying, sorting, inspection, and material transfer.
⚒️ISO, CE, EAC ⚒️12-month Warranty ⚒️7*24H Response
| Belt width | Conveying length(m) | Conveying speed | Conveying capacity | ||
| (mm) | Power(kw) | (m/s) | (t/h) | ||
| 400 | ≤10m | 12-15 m | 15-30 m | 1.25-2.0 | 30-60 |
| 3kw | 3-4 kw | 4-7.5 kw | |||
| 500 | ≤10 m | 12-15 m | 15-30 m | 1.25-2.0 | 40-80 |
| 3 kw | 4-5.5 kw | 5.5-7.5 kw | |||
| 650 | ≤10 m | 12-15 m | 15-30 m | 1.25-2.0 | 80-120 |
| 4 kw | 7.5 kw | 7.5-11 kw | |||
| 800 | ≤10 m | 12-15 m | 15-30 m | 1.25-2.0 | 120-200 |
| 4 kw | 7.5 kw | 7.5-15 kw | |||
| 1000 | ≤10 m | 10-20 m | 20-40 m | 1.25-2.0 | 200-320 |
| 5.5 kw | 7.5-11 kw | 11-22 kw | |||
| 1200 | ≤10 m | 10-20 m | 20-40 m | 1.25-2.0 | 290-480 |
| 7.5 kw | 7.5-15 kw | 15-30 kw | |||
| 1400 | ≤10 m | 10-20 m | 20-40 m | 1.25-2.0 | 400-680 |
| 11 kw | 15-22 kw | 22-45 kw | |||
| 1600 | ≤10 m | 10-20 m | 20-50 m | 1.25-2.0 | 600-1080 |
| 15 kw | 22-30 kw | 30-75 kw | |||
| 1800 | ≤10 m | 10-20 m | 20-50 m | 1.0-2.0 | 800-1500 |
| 18.5 kw | 30-45 kw | 45-110 kw | |||
| 2000 | ≤10 m | 10-20 m | 20-50 m | 1.0-2.0 | 1000-2000 |
| 22 kw | 45-55 kw | 55-132 kw | |||
| 2400 | ≤10 m | 10-20 m | 20-50 m | 1.0-2.0 | 1500-3000 |
| 30 kw | 55-75 kw | 75-185 kw | |||
Customizable design to fit your project requirements
Durable structure for long service life
Easy installation and operation
Professional support and tailored solutions
Using a belt conveyor system can significantly improve workflow efficiency by reducing handling time and minimizing product damage. It allows continuous movement of materials, ensuring a smooth production process.
Additionally, its adaptable structure makes it suitable for both light-duty and heavy-duty applications, providing long-term reliability and cost savings.
