Also known as cement bucket elevator, it is a professional mechanical conveying equipment.
It is mainly used for vertical lifting transportation of various powdery and granular materials, including limestone, coal, gypsum, clay, raw meal, finished cement, pulverized coal and other raw materials.
In cement production lines, this bucket elevator is widely matched and used together with cement crusher, raw material mill, cement mill and other complete cement processing equipment to realize stable and continuous material conveying.

Product Specifications

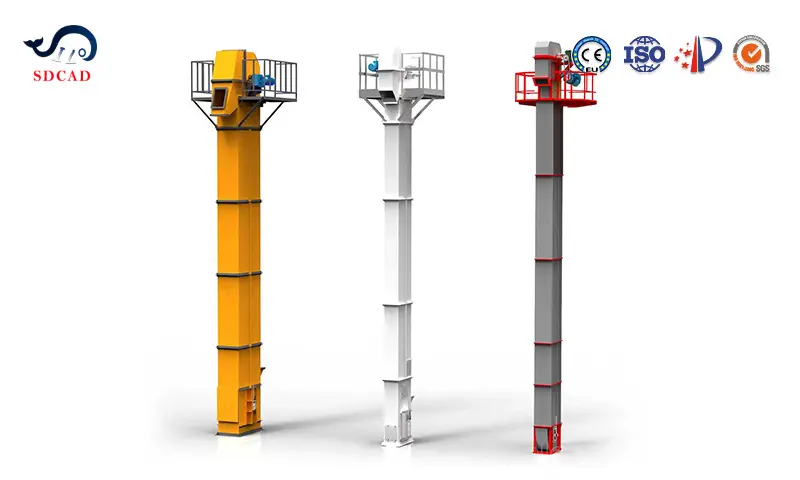

TD Belt bucket elevator conveyor NE Plate Chain Elevator TH type ring chain bucket elevator



Main advantages

  1. Compact structure, small floor space, high lifting height and large conveying capacity.
  2. Stable operation, low noise, low energy consumption and long service life.
  3. Good sealing performance, less dust spillage, more environmentally friendly and safe.
  4. Easy to install and maintain, suitable for long-term continuous production.

Application conditions

It is widely used in building materials, mining, grain, chemical industry, etc. Different models can be selected according to material properties, temperature, output and lifting height.

Quality Certifications

CE Marking Certification for industrial machinery

CE Marking

ISO Environmental Management Certification

ISO-Environment

Patent Certificate for storage and conveying silo design

Patent Certificate

ISO 9001:2000 Quality Management System Certification

ISO 9001:2000

Submitting...

Frequently Asked Questions

What is a SDCAD Bucket Elevator?

The SDCAD Bucket Elevator is a high-efficiency continuous vertical conveying system designed for bulk materials. Unlike basic incline conveyors, it integrates both horizontal and vertical transportation in a single compact unit.

How does a SDCAD Bucket Elevator work?

Bulk materials are fed into overlapping pivoting buckets at a controlled inlet. The enclosed buckets then carry materials through both horizontal and vertical sections without spillage. At discharge points, buckets tip automatically to release materials into the next process. For multi-outlet setups, optional air-actuated tipping ramps enable precise, selective bucket tipping at different stages.

What makes SDCAD Bucket Elevators different?

SDCAD Bucket Elevators feature a fully enclosed, modular design that supports custom configurations with multiple inlets and outlets. Their overlapping pivoting buckets prevent material spillage at inlets and block foreign debris from entering the system. Selective tipping allows controlled discharge at specific outlets, while the final fixed tipping ramp guarantees complete bucket emptying at the end of the cycle.
