SV-J1 Jet Pulse Dust Collector is a premium industrial dust removal solution engineered to eliminate fine dust pollution and comply with industrial environmental standards. Built for long-term stable operation in harsh workshops, this pulse jet dust collector combines ultra-high filtration performance, intelligent self-cleaning design, low energy consumption and easy installation, widely applied in cement, mining, steel, chemical, grain and other industries.
| Parameter | Specification |
|---|---|
| Model | SV-J1 |
| Cleaning Method | Pulse air-jet continuous cleaning |
| Filtration Area | 24 ㎡ |
| Filter Cartridge Quantity | 14 pcs |
| Airflow | ＞1500 m³/h |
| Filtration Efficiency | ＞99.9% |
| Operating Noise | ＜75 dB |
| Compressed Air Pressure | 4-6 bar |
| Voltage | 220V/230V 50Hz |
| Rated Power | 200W, 1A |
| Jet Working Time | 0.1s – 0.3s (Default: 0.1s) |
| Jet Interval Time | 5s – 90s (Default: 28s) |
| Material | 430 Stainless Steel 430 |
| Connection Type | Flange Connection |
| Overall Structure | Cylindrical |
| Packing Size | 1×1.1×1.5 m |
| Gross Weight | 85 kg |
Ultra-High Filtration Performance
Filtration efficiency reaches over 99.9%, effectively captures tiny dust particles. Equipped with 14 filter cartridges and a total 24㎡ filtration area, the airflow exceeds 1500m³/h, delivering stable and powerful dust collection for high-dust working scenarios. The matched Venturi tube further optimizes dust removal effect.
Intelligent Continuous Pulse Jet Cleaning
Adopts pulse air-jet automatic continuous cleaning system. The reverse jet working time ranges from 0.1s to 0.3s, and the jet interval is adjustable from 5s to 90s (factory default: 28s). No frequent manual disassembly and cleaning required, greatly cutting down maintenance labor costs and keeping filter cartridges unclogged all the time. The required compressed air is 4-6 bar for stable operation.
Low Noise & Low Power Consumption
The whole machine runs with noise below 75dB, creating a quiet and comfortable working environment without disturbing daily production. It supports 220V/230V 50Hz global voltage, with only 200W control panel power and 1A current. Low power design saves long-term operating costs and adapts to power standards of different regions worldwide.
Durable 430 Stainless Steel Structure
Main body is made of high-quality 430 stainless steel, featuring excellent corrosion resistance and wear resistance. The compact cylindrical structure saves workshop space, ensuring reliable operation in complex industrial environments for years.
Easy Installation & Strong Compatibility

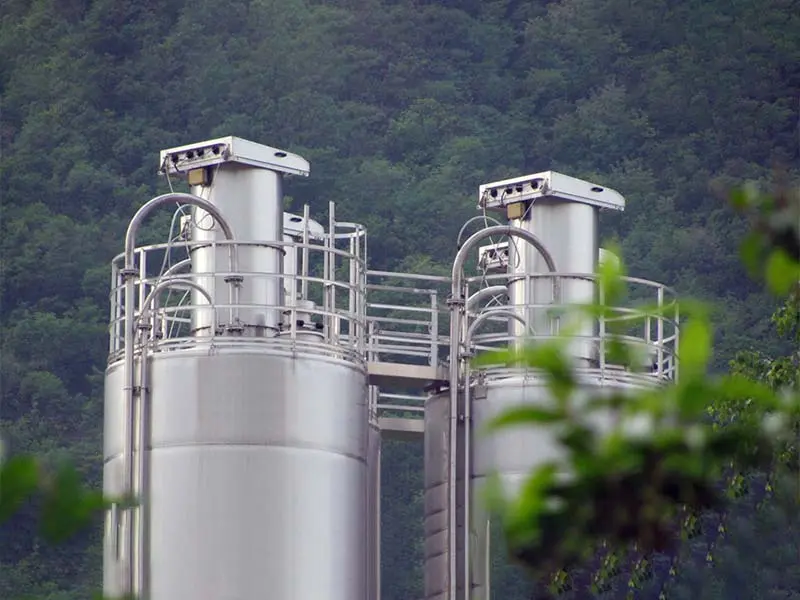

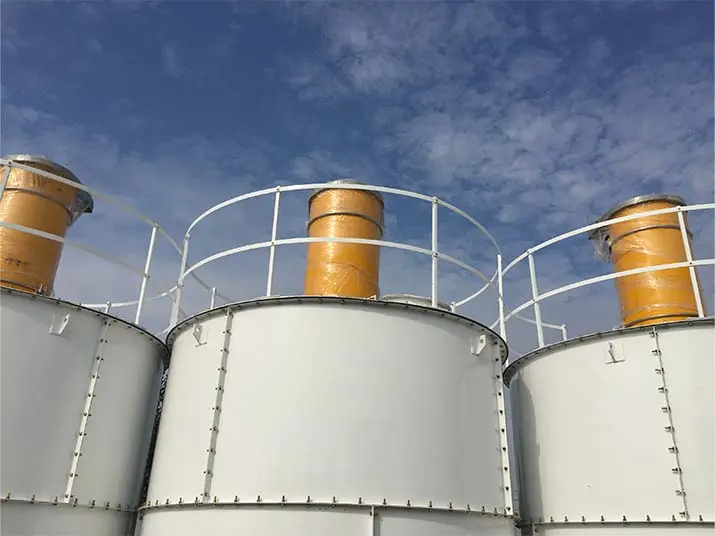

Standard flange connection fits various equipment interfaces. It can be installed on the top or side of cement silos and fly ash silos, and also matches screw conveyors, bucket elevators and bulk cement tanker unloading systems. Simple structure brings convenient installation and daily maintenance.

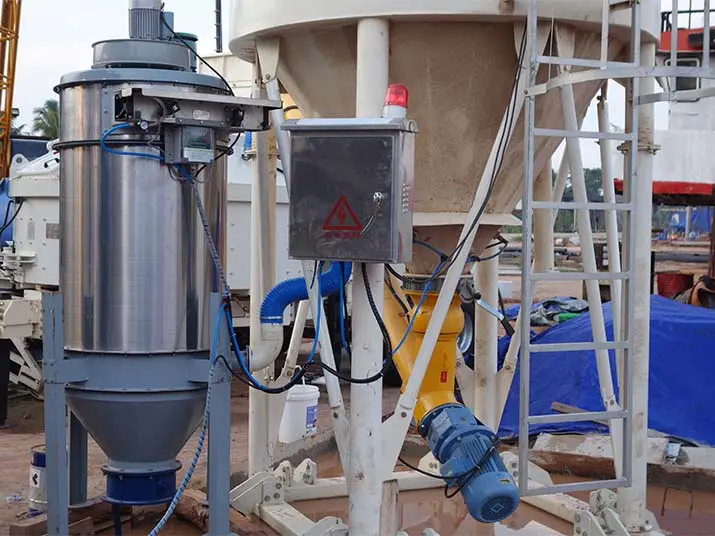

This jet pulse dust collector (Silo dust collector) is ideal for cement mixing stations, cement silos, fly ash silos, mining sites, power plants, metallurgy, chemical industry and grain processing. We provide one-stop professional services:
Export Service: Professional export packaging, complete customs declaration documents, support FOB, CIF and other trade terms, and assist with sea/land transportation arrangement.
Q: Do I need to clean the filter cartridge manually frequently?
A: No. The automatic pulse jet continuous cleaning system keeps cartridges clean during operation, which minimizes manual maintenance work.
Q: How long is the service life of the filter cartridge?
A: The service life is 3-6 months under normal working conditions, depending on dust concentration. We supply original replacement cartridges all year round.
Q: Can this pulse jet dust collector be used globally?
A: Yes. It supports 220V/230V 50Hz universal voltage, suitable for most countries and regions.
Choose our SV-J1 jet pulse dust collector to realize efficient, energy-saving and low-noise industrial dust control!
