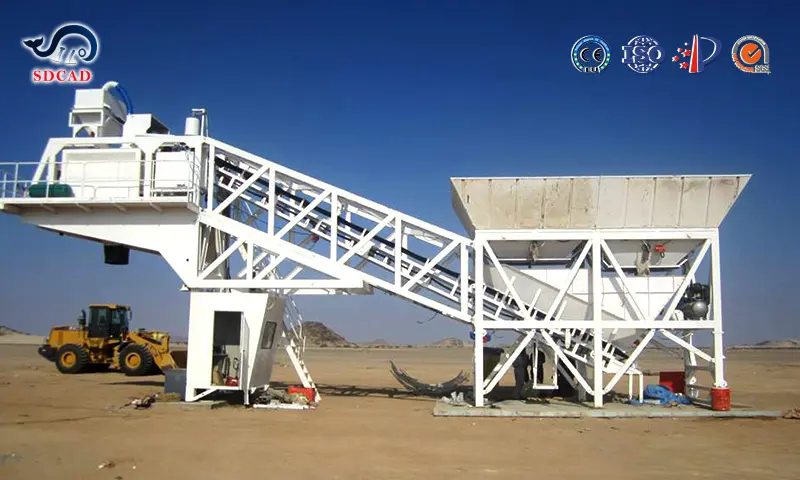

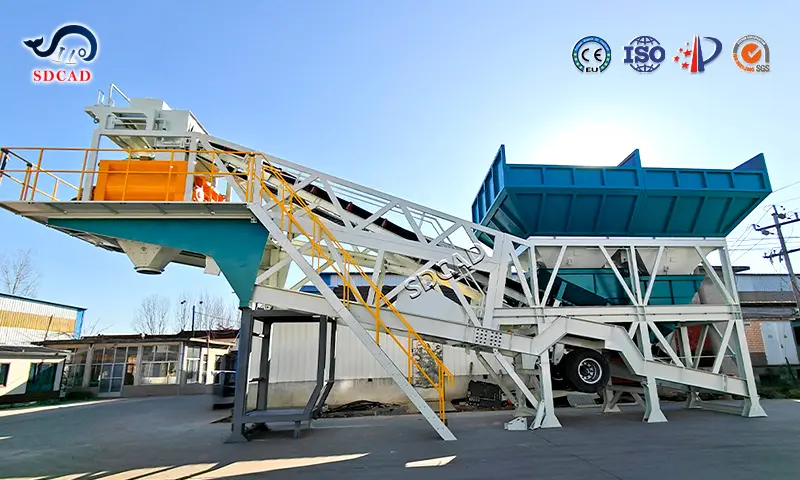

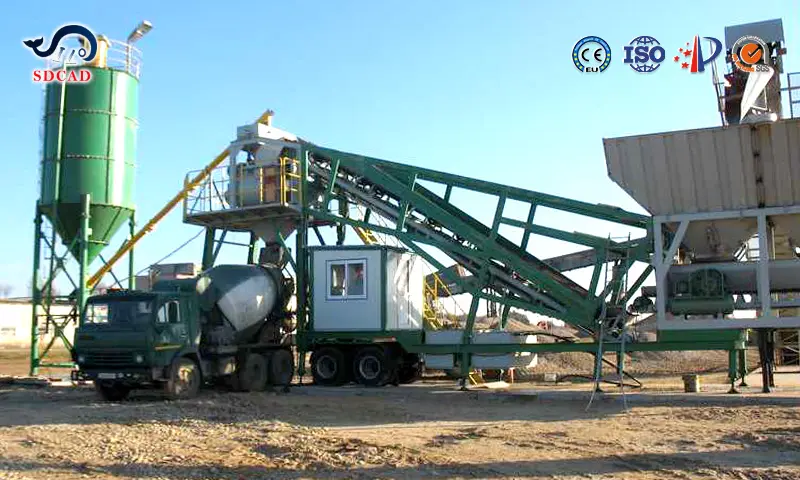

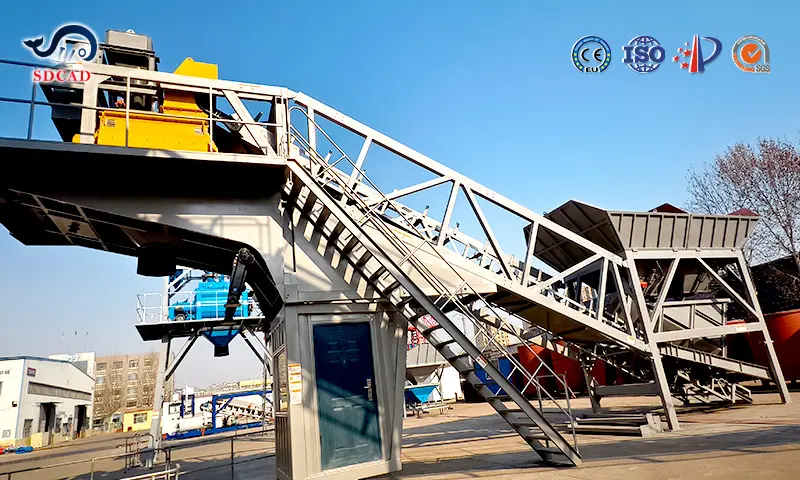

The main engine of SDCAD mobile concrete batching plant is designed and installed on an integrated chassis equipped with axles and tires. Therefore, it can be easily towed and transported by a truck trailer. Due to its pre-assembled structure, the mobile concrete batching plant can be installed within 8 hours on a simple concrete foundation and easily prepared for concrete production.
This type prioritizes road transport efficiency. The entire plant is designed to meet highway transport size requirements, allowing for rapid relocation.
Suitable for projects with the following characteristics:
Long project routes
Frequent changes in construction locations
Relatively short single-point construction time
In these projects, the advantage of trailer-mounted equipment lies not in extremely high production capacity, but in its ability to continuously monitor construction progress.
The integral wheeled structure leans towards a “quasi-fixed station” positioning. It sacrifices some relocation flexibility in exchange for higher operational stability and continuous production capacity.
Suitable for:
Medium to large-scale infrastructure projects
High requirements for stable concrete supply
Long construction cycles but still requiring mobility
The design focus of compact equipment is “space efficiency.” In urban or complex terrain environments, it is often the only feasible concrete production solution.
Suitable for:
Urban road reconstruction
Tunnel and bridge ancillary works
Areas with limited space or strict environmental requirements
Modular solutions emphasize long-term investment value. Users can flexibly adjust configurations according to project stages, avoiding excessive one-time investment.
Suitable for:
Engineering companies with diverse project types
Users requiring long-term cross-project use of equipment
Users with clear plans for future expansion
| Item | HZSY25 | HZSY35 | HZSY50 | HZSY75 | HZSY100 | |
| Theoretical Production (m³/h) | 25 | 35 | 50 | 75 | 100 | |
| Mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | |
| Mixer Power (kw) | 18.5 | 30 | 2×18.5 | 2×30 | 2×37 | |
| Aggregate Maximum Particle(mm) | 60/40 | 60/40 | 80/60 | 80/60 | 80/60 | |
| Feeding Capacity (L) | 750 | 1150 | 1500 | 2250 | 3000 | |
| Discharge Capacity (L) | 500 | 750 | 1000 | 1500 | 2000 | |
| Aggregate Bin Capacity (m³) | 2×6 | 2×6 | 4×5 | 4×5 | 4×5 | |
| Aggregate batching capacity(L) | 800 | 1200 | 1600 | 2400 | 3200 | |
| Belt conveying Capacity (t/h) | 300 | 300 | 300 | 600 | 600 | |
| Screw conveyor Capacity (t/h) | 40 | 40 | 40 | 40-70 | 40-70 | |
| Discharge height(m) | 4 | 4 | 4 | 4 | 4.2 | |
| Installed capacity(kw) | 67 | 79 | 92 | 120 | 170 | |
| Weighing range | Aggregate | 200~800 ±2% | 350~1200 ±2% | 450~1600 ±2% | 600~2000 ±2% | 700~2400 ±2% |
| Cement | 100~350 ±1% | 130~450 ±1% | 150~500 ±1% | 200~800 ±1% | 350~1200 ±1% | |
| Water | 60~200 ±1% | 60~200 ±1% | 75~250 ±1% | 100~400 ±1% | 150~550 ±1% | |
| Additive | 6~20 ±1% | 6~20 ±1% | 6~30 ±1% | 6~30 ±1% | 10~50 ±1% | |
