Engineered for high-performance mixing, our planetary concrete mixer ensures fast, uniform, and consistent results for every batch. Ideal for precast concrete, refractory materials, and other demanding applications.
✔️ Excellent mixing homogeneity
✔️ Short mixing time & high efficiency
✔️ Heavy-duty design for long service life
✔️ Easy maintenance & reliable operation
🏅 Certified Quality
CE Certified | ISO 9001 Compliant
| Productivity | 5~180 m3/h | Mixing Power | 30~110kw |
| Machinery Test Report | Provided | Warranty | 1 Year |
| UNIQUE SELLING POINT | High operating efficiency | Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Video outgoing-inspection | Provided | Working Cycle Period | ≤45s |
| Brand Name | SDCAD | Charging Capacity | 50L~3000L |
| Discharge Way | Hydraulic Discharging;Manual | Motor Power | 30~110kw |
| Outline Dimension | 3900*3600*3100mm | Place of Origin | China |
| Reclaiming capacity | 50L~3000L | Speed of Mixing Drum | 35r/min |
| Water Supply Mode | Automatic Pump | Weight (KG) | 800 kg |
| Out capacity (L) | 500 | Input capacity (L) | 750 |
| Out mass (kg) | 1200 | Mixing power(KW ) | 18.5 |
| Discharging powder (KW ) | Hydraulic discharging way /pneumatic discharging way | Planet/main planet(nr) | 1/2 |
| Paddle (nr) | 1 | Discharging paddle (nr) | 1 |
| Weight(kg) | 2400 | Dimension (L*w*H,mm) | 2230*2080* 1880 |

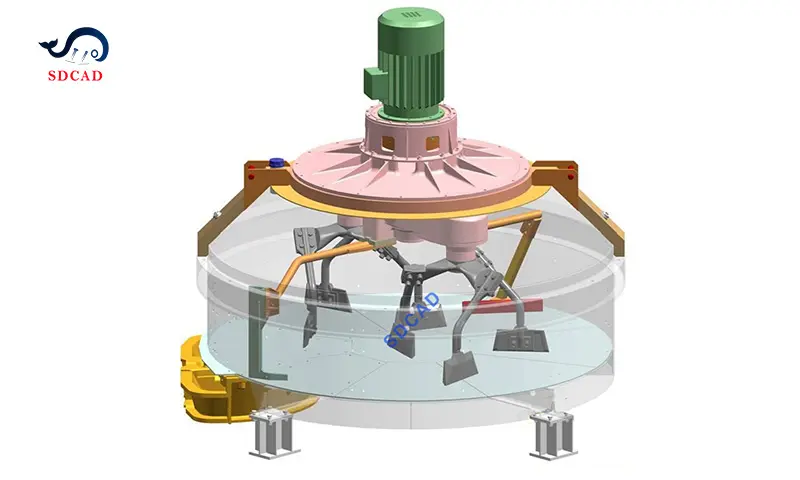

A planetary concrete mixer is an industrial mixer built around a central vertical shaft with several mixing arms that move in a true “planetary” path. Each arm rotates on its own axis while the whole group revolves around the center of the pan. The planetary motion provides intense, uniform mixing for concrete, mortars, and a variety of specialty materials in small and large plants.
It’s all about the motion path. Mixing arms sweep across each and every point of the stationary bowl, so no location goes untouched, which is essential when you require consistent strength and workability from batch to batch. Since each arm rotates and revolves, the mix experiences high shear and intense turbulence, so cement, water, and aggregates disperse and combine quickly.
This motion cuts dead zones you’re used to seeing in tilted drums and helps attain high homogeneity even with stiff, semi-dry, or colored concrete. For high-strength, ultra-high performance, or fiber-reinforced mixes, that type of control keeps the water-cement ratio and additive distribution on point.

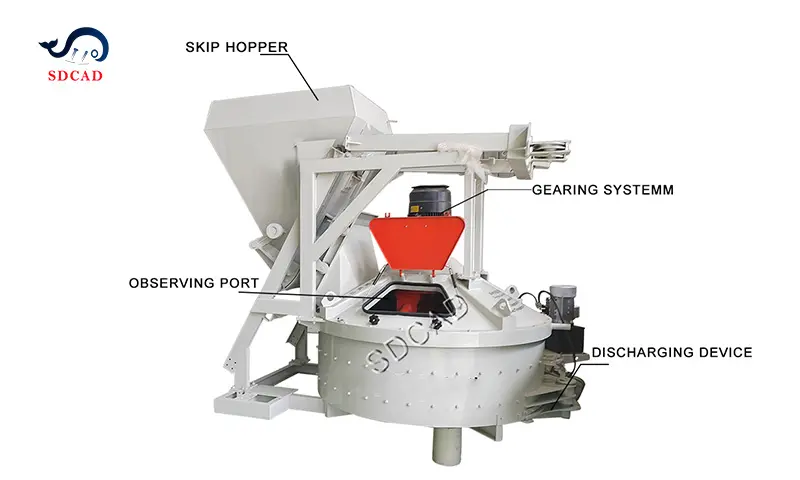

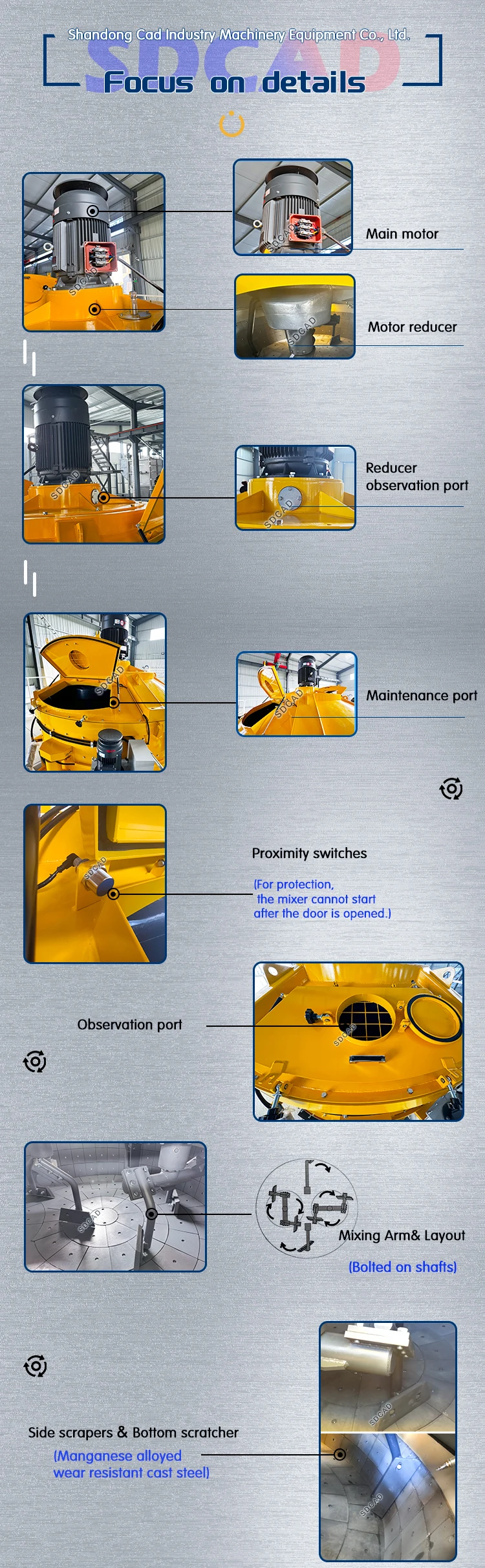

Core components are the vertical shaft, planetary arms, interchangeable mixing blades, a powerful gearbox and a fixed pan or bowl. A motor and main gear reducer rest above or beside the pan and power the planetary carrier, maintaining a consistent speed even under heavy load.

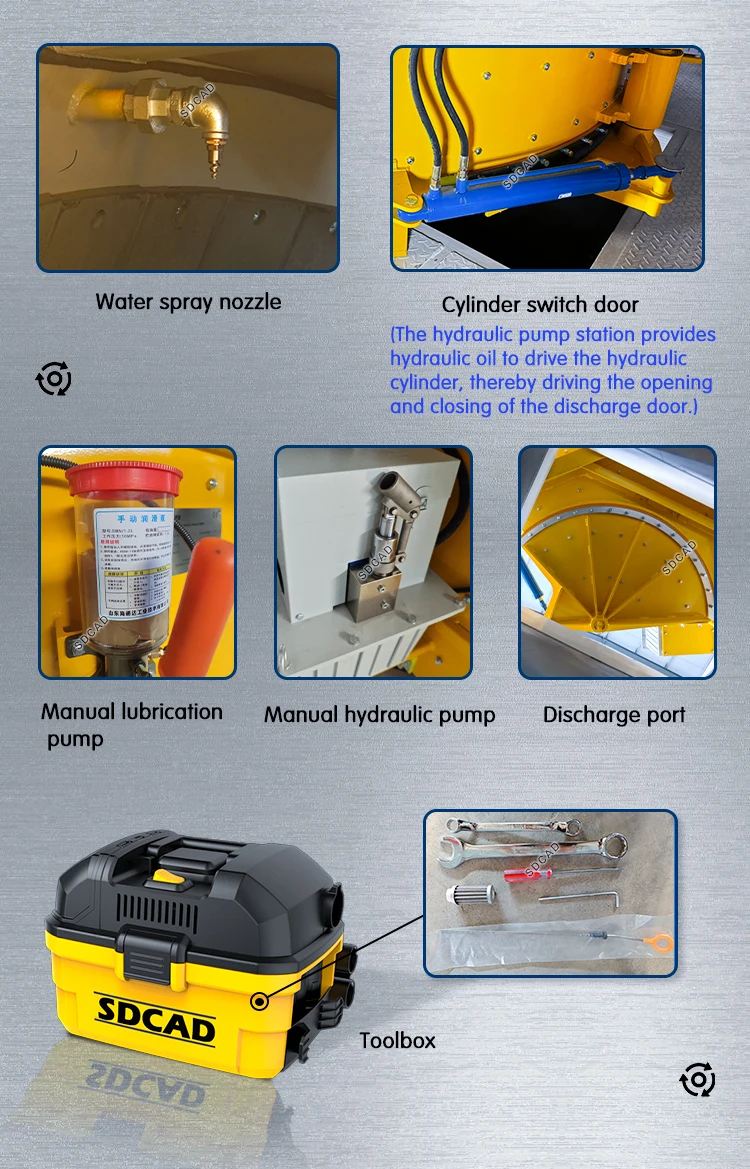

Critical wear parts are often hardox plates or chromium alloy castings to resist abrasion from sand and crushed stone. Most include dust covers, dust collection ports and hydraulic discharge gates so the plant operates cleaner and unloads quickly and safely.

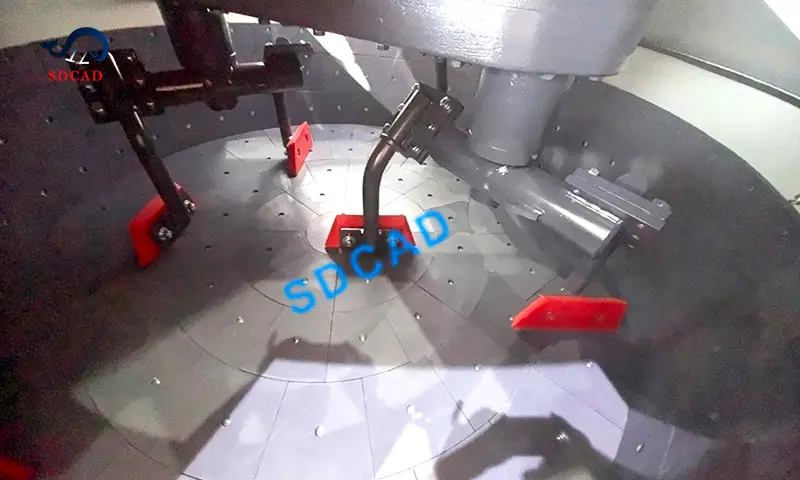

Materials drop from weigh hoppers into a broad pan, which allows cement, water, and aggregates to disperse rather than pile in one location. As the arms spin, paddles scoop, lift, and fold the mix so each and every particle is wet, even in semi-dry colored paving blocks or roof tiles.
Since the pan is stationary and the tools move, the system scrapes buildup on walls and floor, saving wasted material and cleaning time. That steady flow accommodates batch sizes ranging from a few hundred liters to multiple cubic meters, scaled to project requirements.
Planetary mixers are distinguished by their homogeneity. The countercurrent motion eliminates unmixed pockets, so pigments, fibers, admixtures and fine powders infiltrate the entire batch.
This is true even with lightweight aggregates, silica fume or other difficult materials that like to float or ball up in drum designs. We blend the ingredients into sustainable, custom concrete mixtures that bring the most advanced precast, structural elements and high‑performance industrial products to life.
A planetary concrete mixer employs one or more mixing stars, which rotate on their own axes and around a central axis. This generates a forceful, three-dimensional stirring motion. You get very uniform concrete with quick mixing times and reliable quality.
A planetary mixer provides more uniform mixing, particularly of colored, dry, or specialty concretes. It works smaller batches better, and you can more accurately control mix time. It is simpler to clean and maintain, which aids in keeping downtime and contamination risk lower.
Planetary mixers are very common in precast concrete plants, block and paver production, fiber-reinforced concrete, and high-performance or self-compacting concrete. They’re frequent in labs, research, and pretty much anywhere where consistent, quality mixes are important.
Size is determined by your batch volume, mixing frequency, and concrete variety needs. Specify desired output per hour, nominal mix designs, and cycle time. Then correlate these to manufacturer capacity data. Talk to technical experts to give you a sense of the ideal mixer volume and motor power for your requirements.
